Details

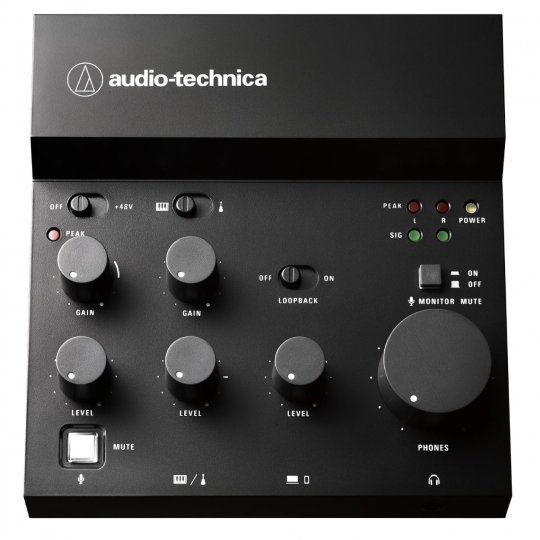

The AT-UMX3 is a compact and user-friendly USB audio mixer designed for streamers, podcasters, and musicians seeking high-quality audio mixing with ease. This plug-and-play device allows seamless connection of microphones and instruments, and includes a loopback function to integrate PC or in-game audio into your livestream. With a sleek design and intuitive controls, you can manage your audio mix and monitoring effortlessly.

Features

High-Performance Connectivity

The AT-UMX3 offers robust features for superior audio management:

• Plug-and-play USB connectivity for easy setup
• Neutrik XLR/6.3mm combo jack for microphones with 48V phantom power
• Switchable Hi-Z guitar or stereo keyboard input
• Loopback functionality for incorporating PC audio into your livestream
• High-performance A/D converter with up to 24-bit/192 kHz resolution
• Independent gain and level controls for mic and instrument inputs
• Microphone mute button for quick control
• Output peak and signal indicator lights
• 6.3mm headphone output for monitoring
• Advanced noise-resistant design
• Includes USB Type-A to USB Type-C adapter and USB Type-C to USB Type-A cable

Specifications

• Input Terminals: MIC: XLR/TRS combo jack, LINE (GUITAR): 6.3 mm (1/4”) standard jack (Hi-Z), LINE (KEYBOARD): 6.3 mm (1/4”) standard jack (L/MONO and R), USB STEREO INPUT
• Output Terminals: HEADPHONE OUT: 3.5 mm (1/8”) stereo mini jack, USB STEREO OUTPUT
• USB: USB 2.0, High Speed
• Sampling Frequency: Max. 192 kHz
• Bit Rate: 16 bit / 24 bit
• Frequency Response: USB input → monitor output: ±1.5 dB (20 Hz to 20 kHz) (with loopback ON, max. USB input level, and medium monitoring volume at 1 kHz)
• Power Supply: USB-C bus power: 5 V, 500 mA
• Power Consumption: Max. 2.5 W
• Dimensions: 127 mm (5”) × 131 mm (5.2”) × 44 mm (1.7”) (W × D × H)
• Weight: 334 g (12 oz)
• Finish: Matte
• Supported OS: Windows 10, Windows 11, macOS Catalina, Big Sur, Monterey, Ventura, iOS 16.4.1, iPad OS 16.4.1, Android OS 10, 11, 12, 13
• Accessories Included: USB cable (1.5 m (4.9') USB Type-C to USB Type-A), USB conversion adapter (USB Type-A to USB Type-C)
