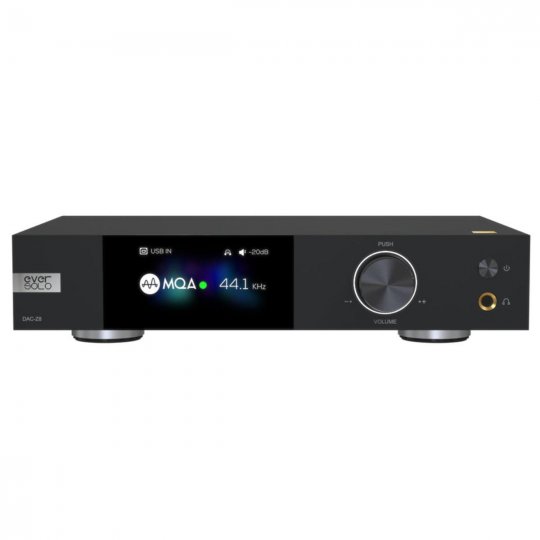

DAC-Z8 is a compact audio decoder with excellent workmanship and high per-formance. Coming with the 3rd integration of XMOS 316 and ESS flagship ES9038 Pro DAC chip, the decoding formats support up to DSD512, PCM 768Khz@32Bit and MQA full decoding. It has exceptional sound quality, good preamp performance and strong headphone driving force. Rich inputs make the device be a good partner of high end headphones and stereo speakers.
High Performance DAC ES9038Pro
ESS flagship ES9038Pro DAC is known as the industry benchmark, with relatively lower total harmonic distortion level, extremely low noise and distortion. Let's enjoy the authentic high-fidelity music experience.
Professional Calibration
Benefited from development engineers' rich experience in analog circuit design, DAC-Z8 has professional calibration and circuit design. The total harmonic distortion ratio which has been measured is- 124dB (0.000062%), signal-to-noise ratio and dynamic range are 133dB. These industry leading indicators are solid foundation for good sound quality.
XMOS 316
The 3rd generation XMOS 316 has faster processing speed and better USB bandwidth, which ensures lossless transmission for high-definition audio data. USB output supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial output support DSD 64 (DoP) and PCM192@24Bit.
DAC-Z8 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
High Precision Clock Oscillators
Two low jitter clock oscillators (45.1584MHz and 49.152MHz) are integrated in DAC-Z8, which correspond to 44.1 KHz and 48KHz multiplied sampling management. Audio decoding is more accurate.
Shunt Compensation and 8 OPA1612 I/V Circuit
DAC-Z8 1/ circuit is made up of 8pcs of OPA1612. The multichannel signal shunt compensation technology has been adopted, 8 OPA1612 correspond to 8-channel output for I/V signal conversion, then output
to 2 channels in parallel. In addition to high-precision resistances, it helps amplifying XLR, RCA and headphone output signal lossless, improving channel separation, dynamic range and the sound integrity.
Differential Amplifier Circuit and Balanced Preamp Output
The analog audio circuit is fully balanced design. XLR, RCA and headphone output are all processed by a balanced differential amplifier circuit. The noise has been eliminated by resolving the crosstalk of the shared loop and improving channel separation. The high-fidelity preamp circuit supports refined volume adjustment, without needing to connect with an additional preamp.
RCA and XLR Separate Output
In order to reduce the possible signal interference of the RCA and XL simultaneous output, Z8 RCA and XL are output separately to achieve higher audio indicator and better audio performance. For sure, RCA and XL can be output at the same time by setting manually.
Qualcomm QCC5125 Bluetooth Module
DAC-Z8 Bluetooth audio receiver adopts Qualcomm QCC5125 module. It is Bluetooth 5.0 and supports BC/AAC/aptX/apt LL/aptX HD/LDAC Bluetooth audio protocol. Enjoy CD quality music conveniently by connecting mobile phone, tablet and computer.
Abundant Digital Filters
Different digital filter modes in DAC setting to meet different demands, there are 7 PCM filters and 4 DSD filters for you to choose.
Multiple Ports to Connect with Diverse Audio Source
DAC-Z8 has rich ports for digital audio input, including Coaxial, Optical, asynchronous USB DAC, Type-C for computers and mobile devices. APT HD Bluetooth audio input can be used to connect with computers, streamers, CD players and mobile devices etc.
Low Ripple Power Module
Low-noise regulated power supply module and dedicated audio filter capacitor are tailored for DAC-Z8. It powers for audio circuit and ensures clearer sound, with low ripple and less interference.
Monitor-level Headphone Amplifier
The professional headphone driver circuit in DAC-Z8 has excellent audio indicators and strong driving
force, which means DAC-Z8 can be used as a high-performance headphone amplifier and drive 16-300ohm Hifi headphones, with both high and low gain output options.
Exclusive Controller APP
DAC-Z8 can be easily controlled by mobile phone with the EVER SOLO Controller APP. Almost all settings can be done in the APP via Bluetooth technology.
Colorful and Practical User Interface
The 3-inch LCD display on DAC-Z8 shows the colorful user interface of menu setting, audio source selection, VU meter and audio info. UI is cool and user-friendly, with some personalized preference settings.
Multifunctional Knob
The knob on the front panel is multifunctional, not only can be used for volume adjustment but also for menu selection, such as, input source switching, output selection, filter modes, UV meters, system language setup and firmware update etc. The embellishment of ambient light looks scientific and technological. It works as a supplement so that the device can still be controlled without the remote control.
Aluminum Chassis
DAC-Z8 is made of aviation aluminum, processed by NC workmanship, coming with a stable body structure. It is a combination of exquisite appearance design and modern elements.
Functional overview
- ESS Sabre flagship ES9038Pro 32 bits DA converter chip
- The 3rd generation XMOS XU316 with higher performance and faster speed
- High precision, low jitter dual clock oscillators synchronous processing
- OPA1612*8 I/V operational amplifier circuit
- 8-channel shunt compensation technology
- Up to DSD512 Native, PCM768KHz@32Bit decoding
- Optical, Coaxial and USB support MQA full decoding and rendering
- Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol
- Fully balanced audio architecture
- Differential amplifier circuit and professional calibration
- High-performance headphone amp output, 16-300 ohm headphone driver
- 3-inch LCD screen, with diverse VU meter modes
- Low ripple power supply to ensure a purer power source
- Exclusive mobile phone controller APP for global control
