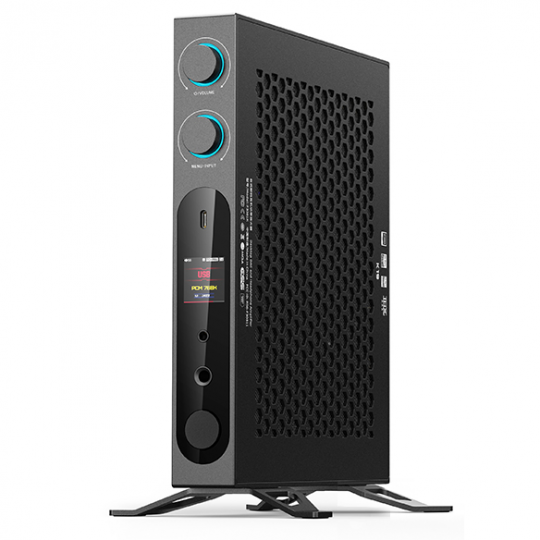

Studio-grade flagship DAC and headphone amplifier K19
31-band high-precision lossless PEQ | 8000mW-+8000mW powerful output
Innovative, 31-band high-precision lossless PEQ
The K19 features DEL (Dual Engine Limiter) technology, and through proprietary algorithms, the K19 can apply various audio effects such as dynamic range compression (DRC) and dynamic range enhancement (DRE) as well as an advanced limiter to prevent clipping. Also on the K19 is an adjustable 31-band high-precision lossless PEQ*, which supports direct adjustment of PCM 44.1k~192k audio signals without resorting to sampling rate conversion (SRC). For each band, the gain can be adjusted between a range of +12~-24dB and the Q value can be adjusted between a range of 0.4dB~128dB. And the PEQ curves don’t have to be used only by you — PEQ presets on the K19 can be shared between users. Being able to import and export PEQ presets opens up a whole new dimension to sound adjustment!
*PEQ adjustment is supported on Windows and Mac computers, as well as with the mobile control app
ADI ADSP-21565 with SHARC+ core
For the first time in an FIIO product, the K19 flagship desktop DAC and headphone amplifier utilizes an ADI ADSP-21565 DSP chip with the SHARC core backed by a custom ultra-low phase noise femtosecond crystal oscillator. This DSP chip featuring a high clock frequency of 800MHz and capable of 64-bit double precision floating point calculations is what makes the 31-band high-precision lossless PEQ possible in the K19. The ADI DSP chip not only ensures that audio signals after PEQ adjustment are of high quality and with minimal distortion, it also helps to enable powerful system protection functions that safeguard both the K19 and the other devices and headphones connected to it.
Flagship ESS 8-channel ES9039SPRO*2 DACs
Inside the K19 are two of the new ESS 8-channel ES9039SPRO DAC chips, featuring the fourth generation 32Bit HyperStream architecture and capable of ultra-high dynamic range with ultra-low noise. These DAC chips allow the K19 to output clearer and richer audio with plenty of detail.
8-channel THX AAA 788+ headphone amplifier
The K19 features a new headphone amplifier design consisting of an 8-channel THX AAA 783+ headphone amp architecture working together in parallel and backed by a high-voltage power supply. The THX amp chips are connected in parallel via 2x2 groups to make up a totally balanced, 4-channel amplification system. The result is enhanced transients, and high-power output up to 8000MW-+8000MW with a 320 load — allowing the K19 to drive all kinds of headphones with ease.
Dual ACCUSILICON high-performance ultra-low phase noise femtosecond crystal oscillators
The K19 employs two industry-leading ACCUSILICON AS318-B ultra-low phase noise femtosecond crystal oscillators which are 100% pre-screened before being selected for use in the K19s femtosecond crystal oscillators effectively reduce the impact of phase noise on audio signals and allow for accurate audio restoration and different sampling rates — resulting in purer and more stable sound no matter the source sampling rate.
High-quality digital audio processing architecture
For the first time in an FIO product, the K19 utilizes a powerful quad-core FPGA as a high-definition digital signal processing center. The FPGA is responsible for handling all incoming digital signals, including Bluetooth reception and decoding, USB decoding, coaxial and optical decoding, HDMI/ARC decoding, and DSP digital signal processing. These digital signals are directly transmitted through two sets of 125 channels to the dual ES9039SPRO DACs, ensuring minimal distortion and loss of audio signals in the digital audio processing chain.
New flagship, ultra-thin die-cast unibody shock-proof construction
The K19 comes with a brand new styling, made of a die-cast unibody aluminum alloy body for a totally seamless design. The aluminum alloy body is carefully polished by a multi-axis CNC machine to a quality befitting of a flagship. This aluminum alloy body not only features reduced thickness but is also capable of shock-proof. And when paired with the included stand, the K19 is simply stable!
A new HiFi direction, supports HDMI/ARC
HDMI IN and ARC capabilities are present in an FIIO desktop DAC and amp for the first time. The K19 supports decoding from HDMI2.0 input, HDMI output, and HDMI ARC audio return channel functionality, opening the doors to a new way of experiencing an immersive audiovisual experience.
Separated and shielded circuit boards
The digital and analog audio circuits of the K19 lie on separate boards for full isolation and greatly reduced interference. There are metal shields for the DSP board, DAC board, and the THX headphone amplifier board, as a result of the digital board and module board adopting a compartmentalized aluminum alloy isolation design. These measures all help to minimize crosstalk to ensure signal purity. In addition, the honeycomb-mesh aluminum alloy body can also help to further reduce external interference, allowing you to enjoy pure, clean music.
Multi-stage analog power supply
The K19's analog audio circuit is powered by a multi-stage power supply. The numerous stages of the analog power supply mean that there are power control circuits for the digital-to-analog conversion, LPF, preamplifier, headphone amp, and other audio circuit stages. Each stage uses a large number of precision LDOS for secondary voltage stabilization to ensure continuous pure clean power.
-
Separate analog and digital power supplies
- Separate power supplies for the digital and analog audio circuits effectively avoid crosstalk and interference between the two circuits. It also allows for better power supply isolation.
-
Carefully designed power supply
- Built into the K19 is a new generation 40W lower-noise, high-efficiency, long-lasting industrial-grade power supply. This power supply supports an ultra-wide range of input voltage (85~305VAC) and can operate under extreme temperatures (-40°C~85°C) with high reliability of around 500,000 hours. The K19 can also be used with an external DC power supply, allowing you to pair it with a high-performance linear power supply, letting you experience a different sound. *External DC power supply supports 15V-3A
Dual internal and external heat dissipation, high energy coolly output
The K19's internal heat dissipation system consists of thermally conductive material being in contact with the chips inside, which transfers the heat from the chips to the thermally conductive material and finally to the aluminum alloy outer frame. In addition, the thermally conductive aluminum alloy body features a honeycomb mesh design, which allows for convection heat dissipation. The internal and external heat dissipation systems of the K19 allow the machine to consistently output high power without the user worrying about heat issues.
Six operating modes
USB decoding Bluetooth input the XMOS 16-core XU316 the Qualcomm QCC5125 enables decoding up to enables support for aptx 768KkHz/32bit, DSD512, HD/aptX Adaptive/LDAC MOA full decoding codecs Optical input Coaxial input capable of receiving optical capable of receiving input, for use as an optical coaxial input, for use decoder HDMI input #7 HDMI ARC supports audio input from supports audio return from devices such as video game & Toys and other devices consoles/Blu-ray players set-top boxes
Four analog output + two digital output
PO+PRE OUT (default position): front headphone out+rear audio out (volume adjustable) PO: audio output only from the front headphone jack (volume adjustable) PRE OUT: audio output only from the rear connectors (volume adjustable) LO: audio output only from the rear connectors (fixed level output) COAXIAL: standard RCA connectors, digital output OPTICAL: standard toslink connectors, digital output
Pure versatility, comprehensively excellent experience
Use both vertically and horizontally Allows it to save space and effectively dissipate heat; when used vertically, it also can be used as a unique headphone stand for even more convenience
Bi 1.3-inch full-color display
Allows you to easily understand its current status, and makes changing
Custom infrared remote control included
Allows you to conveniently switch between operating modes, select EQ, adjust volume, and other functions from a distance
12V TRIGGER bidirectional trigger
Supports active/passive control modes, can be linked to. other 12V TRIGGER to switch devices on and off in sync
GNDILIFT ground switch
Reduces crosstalk and interference between devices
Supports FIIO Control app
Allows you to conveniently adjust various functions
Dual indicator lights on the volume knob
Supports sample rate indication and various lighting effects* *Various light effects require a software update to the control app
