The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

Applications

Instrument Rigs

You've got a rack for your effects, preamps, tuner...You're going to plug that into the wall? One big spike and your rig is up in smoke. Furman's advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman's advanced Linear Filtering Technology, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

Recording

Can't track down where that noise is coming from? Your mix sounding flat? With Furman's advanced Linear Filtering Technology you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman's advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it's enough to power your whole home studio.

Dj Equipment:

Bars, clubs and other event venues have some of the worst power out there - from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman's advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

Pro Audio:

When you're out there gigging, you'll never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes it's toll - that's why it's smart to plug into Furman's advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features:

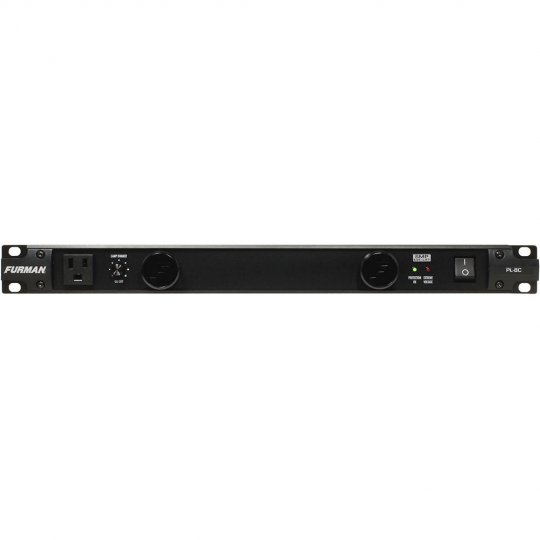

Furman PL-8C Features at a Glance:

• Surge Protection
• Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
• Noise Filtration
• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
• Voltage Protection
• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
• Pull-out Lights
• Dual smooth track retractable LED lights illuminate equipment in your rack.
• Diagnostic Lights
• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
• Isolated Banks
• Isolated outlet banks minimize inter-component interference and noise contamination.
• Wall Wart Spacing
• Three widely spaced outlets accommodate bulky AC power transformers.
• 15 AMP Rating
• 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
• Nine Total Outlets
• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
• BNC Lamp Connector
• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Speicifications:

General:

• Family: Classic Series
• Line Voltage: 120 (Volts)
• Number of Outlets: 9
• Number of Isolated Banks: 2
• Outlet Descriptions: All 9 outlets linearly filtered and surge protected
• Rack Mountable: Yes
• Rack Ears Included: Yes
• Front Panel Meter(s): No
• Front Media Light(s): 2 multi-LED, dimmable lamps
• Control:
• Front panel:
• - On/Off switch
• - Light dimmer knob
• Compliance: cTUVus
• AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug
• Dimensions: 19" W x 10.5" D x 1.75" H
• Weight: 12 lbs
• Power Consumption: 12 Watts

AC Protection:

• AC Protection Technology:
• Standard spike and surge protection
• Series Multi-Stage Protection
• Non-sacrificial protection with zero ground contamination
• Under-Voltage Shutoff: 90V
• Over-Voltage Shutoff: 140 VAC
• Maximum Current Rating: 15 (Amps)
• Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration:

• Filtration Technology: LiFT
• Filtration Rating:
• 10 dB @ 10 kHz
• 40 dB @ 100 kHz
• 50 dB @ 500 kHz

Other:

• Response Time: 1 nanosecond
• Peak Impulse Current: 6,500 amps
• Rear BNC Connector 12VAC 500MA max: Rear rack lamp (Lamp not included)
