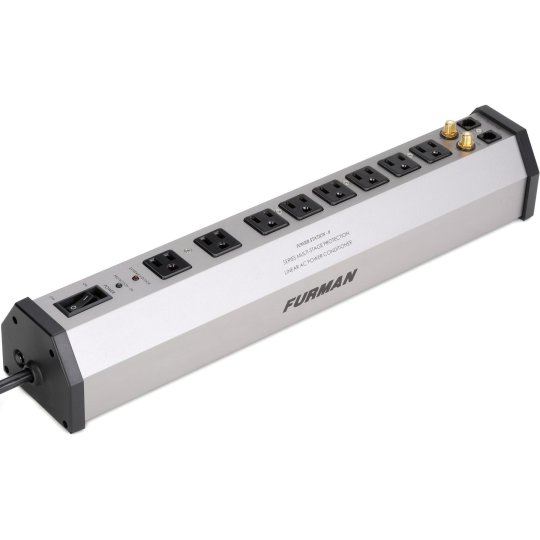

Sturdy Aluminum Chassis
- SMP provides the highest level of protection available
- LiFT significantly reduces AC line noise
- E.V.S. protects equipment from dangerous overvoltage conditions
- Zero ground contamination circuitry assures the delivery of pure AC power thus protecting critical audio/video components
- Cable satellite and Telco connectors deliver advanced protection to connected equipment
- Isolated outlet banks keep digital and analog components from interferring with each other
- Sturdy Aluminum chassis
Today’s overworked, outdated power grid delivers poor quality AC power. When connecting sensitive equipment to regular power outlets, AC noise masks and distorts critical signal information which cripples performance. This is why it’s more important that ever to purify or clean the AC powering your sensitive audio/video equipment.

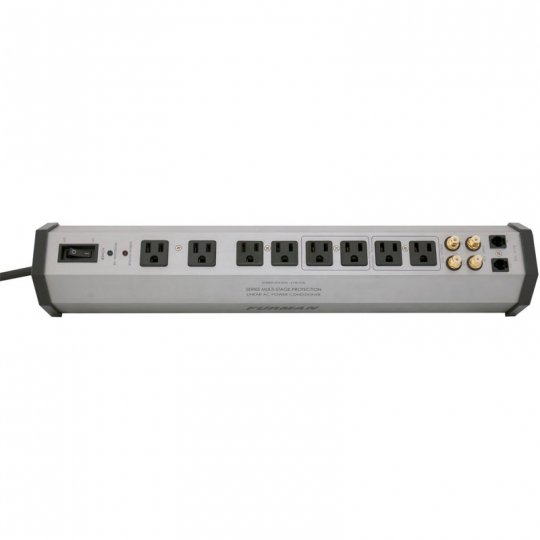

The PST-8 D all feature Furman’s SMP circuit which incorporates Linear Filtering Technology (LiFT) and a high current TVZ-MOV to insure that any electronic device (including televisions, projectors, CD-DVD players, or computers) is fed clean, filtered AC power. This dramatically reduces noise, ensuring consistent peak performance from your equipment.
Typical AC filters feature antiquated non-linear circuits. Though these multiple stage filters or power cleaners reduce some noise, they do so unevenly. In fact, they can add noise to your power line due to their filter’s excessive resonant peaking. With Furman’s proprietary Linear Filtering Technology (LiFT), AC noise is suppressed evenly, assuring maximum performance from your system.
Additionally, today’s power grid commonly experiences numerous electrical surges and spikes on a daily basis. At best, these irregularities can degrade your equipment’s performance, and, at worst, can severely damage your entire system. Furman’s SMP circuit offers the highest degree of protection available without sacrificing itself or any of its components.
Conventional AC conditioners employing older technologies leak voltage to circuit ground which can, in fact, aid in damaging sensitive digital circuits such as computer processors. Furman’s new technology, however, never directs voltage to the circuit ground further ensuring the safety of your equipment.
Another feature that is unique to Furman’s SMP circuit is automatic extreme-voltage shutdown. Extreme voltages are statistically the most common, damaging AC event. The Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 137 volts or higher protecting itself and connected equipment from the extreme voltage. Only Furman offers this degree of protection! Add telco and cable /satellite transient voltage suppression, and you have what is, unquestionably, the most comprehensive protection available in a portable AC power conditioner.
| Power Consumption: |
6 Watts for display and control circuits independant of actual load |
| AC Noise Attenuation: |
Transverse (Differential) Mode:
> 40 dB from 150 kHz - 100 MHz > 80dB from 100 kHz - 1GHz |
| Dimensions: |
2.75” H x 3.75” W x 19.69” D |
| Transient Voltage Surge Suppression: |
120 VAC - Series Multi-Stage Protection (SMP) with a high current TVZ-MOV- Non-sacrificial with zero ground contamination
(188 V peak clamping @ 6000V 3000A input)
Extreme Voltage Shutdown (EVS) (>135 VAC)
Telco
Cable/Satellite (less than .1dB insertion loss) (2 pairs) |
| AC Current Capacity: |
Input - 15 Amps capacity required
Output - 15 Amps RMS (Maximum, all outlets combined - continous) |
| Outlets: |
4 digital-ultrasonic noise filtered outlets
4 linearly filtered outlets |
| Safety Agency Listing: |
C-UL (UL standard #1449, #1363) |
| Warranty: |
The PST-8 D is protected by a three year limited warranty covering defects in materials and workmanship
|
Documentation
Download Product Datasheet (PDF - 1.3 MB)
Warranty
Protected by a three (3) year limited warranty covering defects in materials and workmanship.
