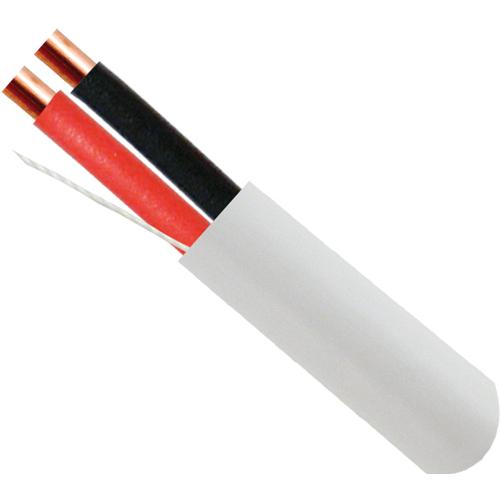

Vertical Cable 16AWG 2 Conductor 65 Strand 500ft PVC Audio Cable Pull Box

$249.99

Secure One-Page Checkout
Get 10 Miles When you spend $249.99. See details
Vertical Cable Authorised
This product is brand-new and factory sealed Vertical Cable SS-BG162PB-WH  Available
UPC : TBD   5% Price Promise
Warranty : 1yr Manufacturer 15 Day Exchange
Shipping : FREE in Canada Ships in 2 to 4 Days




$83/mo suggested payments with 3 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!


Details

Audio Cable, 16 AWG, 2 Conductor, Stranded (65 Strand), PVC Jacket, 500 ft.

Features:

  • Size: 16 AWG x 2C
  • Material: Oxygen-Free Stranded Bare Copper
  • Stranded Conductors Provide Additional Flexibility
  • Insulation Material: PVC
  • Cold Bend Test: -20,°C, 4 hours No Cracking
  • Flame Retardant Test: CMR CL3
  • Sequential Length Markings on Jacket
  • Available in a Wooden Spool or Pull Box

Specifications

Specifications:

Conductor:

  • Material: Oxygen Free Copper Wire Strands
  • Size: 16 AWG
  • Stranding: 65 Strand
  • Strand Diameter: 0.16 mm

Insulation:

  • Material: PVC
  • Average Thickness: 0.31 mm
  • Min. Point Thickness: 0.27 mm
  • Insulation Diameter(±0.05mm): 2.10 mm
  • Assembly Diameter (±0.1mm): 4.10 mm

Jacket:

  • Material: PVC
  • Average Thickness: 0.50 mm
  • Min. Point Thickness: 0.45 mm
  • Outer Diameter (±0.1mm): 5.10 mm

Ripcord:

  • Material: Nylon (150D)

Electrical Performance:

  • Rated Temperature (°C): 75
  • Voltage Rating: 300V
  • Reference Standard: ETL, CMR, CL3

Mechanical Characteristics:

  • Test Object: Jacket
  • Test Material: PVC
  • Before Tensile Strength (Mpa): ≥13.8
  • Aging Elongation (%): ≥100
  • Aging Condition (°Cxhrs): 100x168
  • After Tensile Strength (Mpa): ≥85% of unaged
  • Aging Elongation (%): ≥50% of unaged
  • Cold Bend (-20±2° Cx4hrs): No Crack
